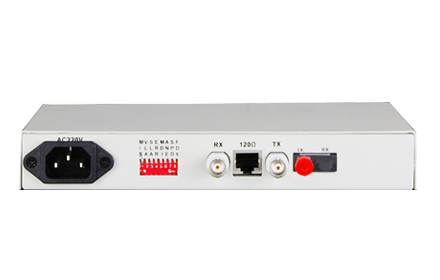

    POE E1-FE Media Converter

    Type: Message

    Description:

    Product Description

                  This interface converter is based on FPGA,providing one  E1 interface and one Ethernet interface to achieve 10/100Base-T Ethernet data transmission on the E1 channel. It is a high performance, self-learning Ethernet bridge. This device is the extension device of Ethernet, using network (PDH/SDH/Microwave) that provide E1 channel to achieve local and remote Ethernet interconnecting with serial interfaces at a lower cost. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

                  IEEE802.3af Power over Ethernet ports to provide support through a wireless access point power Category 5 Ethernet cable (AP) or IP phoness and other devices.

    Functional Properties
    Ø Based on proprietary integrated circuit;
    Ø Ethernet data transmission in an E1 circuit;
    Ø Built-in dynamic Ethernet MAC address list (4096), with local data frame filtering;
    Ø PSE power company for Ti chip, high stability;
    Ø Ethernet port supports standard IEEE802.3af Power;
    Ø Ethernet port maximum power 15.4W;
    Ø There is no detectable E1 loopback, and is indicated by the indicator;
    Ø can distinguish E1 signal loss when the remote device is powered down or disconnected in the middle E1 transmission;
    Ø Ethernet 10 / 100M, full / half duplex fully adaptive, support VLAN protocol;
    Ø Ethernet port supports AUTO-MDIX (crossover cable and straight-line adaptive);
    Ø provide two kinds of clock ways: E1 master clock, E1 lines from the clock;
    Ø provides three kinds of loopback: E1 local loopback (ANA), Ethernet local loopback (DIG), command peer Ethernet loopback (REM);
    Ø support adaptive 120Ω / balance and 75Ω / Imbalance impedance, no need to make settings.

    Technical Parameters

    u  E1 Interface

        Interface Standard:      comply with protocol G.703;
        Interface Rate:             n*64Kbps±50ppm;
        Interface Code:            HDB3;

        E1 Impedance:             75Ω (unbalance), 120Ω (balance);

        Jitter tolerance:            In accord with protocol G.742 and G.823

        Allowed Attenuation:   0~6dBm

    u Ethernet interface (10/100M)

        Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

        Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

        MAC Address Capability: 4096

        Connector:                  RJ45, support Auto-MDIX

    u Ethernet POE characteristics
        PoE standard: IEEE 802.3af (port output power 15.4W)
        PoE type: the end of cross connection (optional for mid span)

        PoE port: port output power of 15.4W (IEEE802.3af)
        PoE: 1/2+, 3/6- wire line (optional for 4/5+, 7/8- line)
    u   Power

        Power supply: AC180V ~ 260V；DC –48V；DC +24V

        Power consumption: ≤10W

    u   Dimension

        Product Size :       216X140X31mm( WX DXH))

        Simple packaging : 274X193 X84mm ( WX DXH)

        Piece Weight: 1.3KG

    u  Working environment

        Working temperature: -10°C ~ 50°C
        Working Humidity:        5%~95 % (no condensation)

        Storage temperature:   -40°C ~ 80°C
        Storage Humidity:         5%~95 % (no condensation)

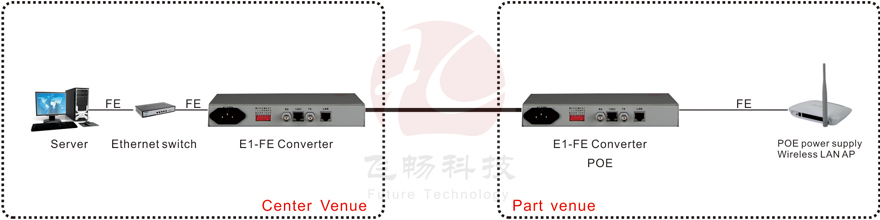

    Application Scheme

    Applications
